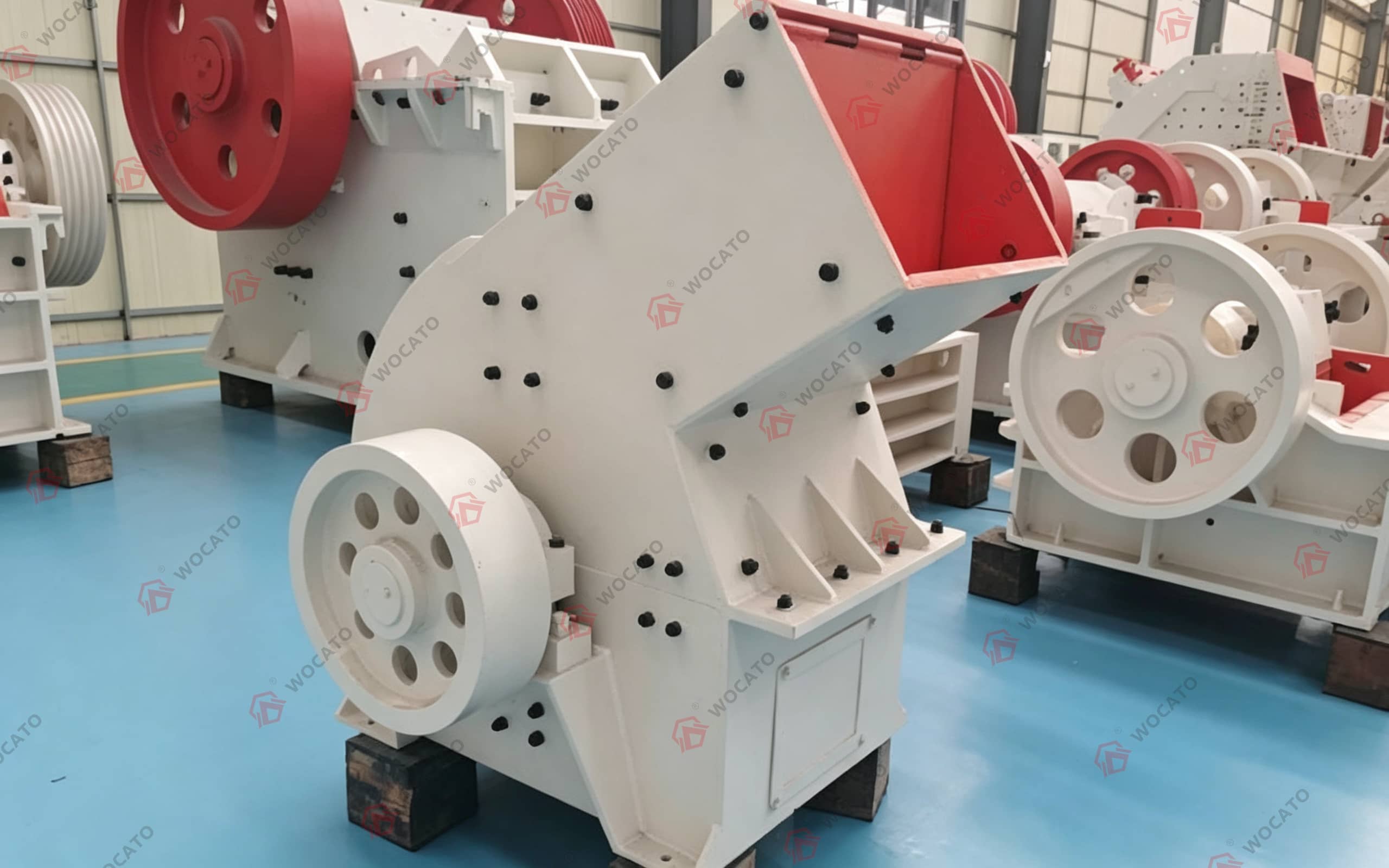

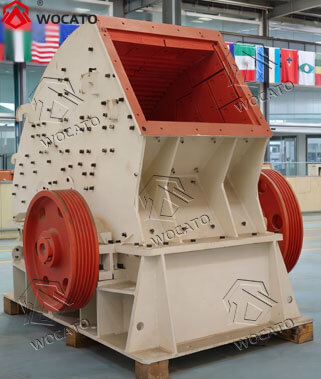

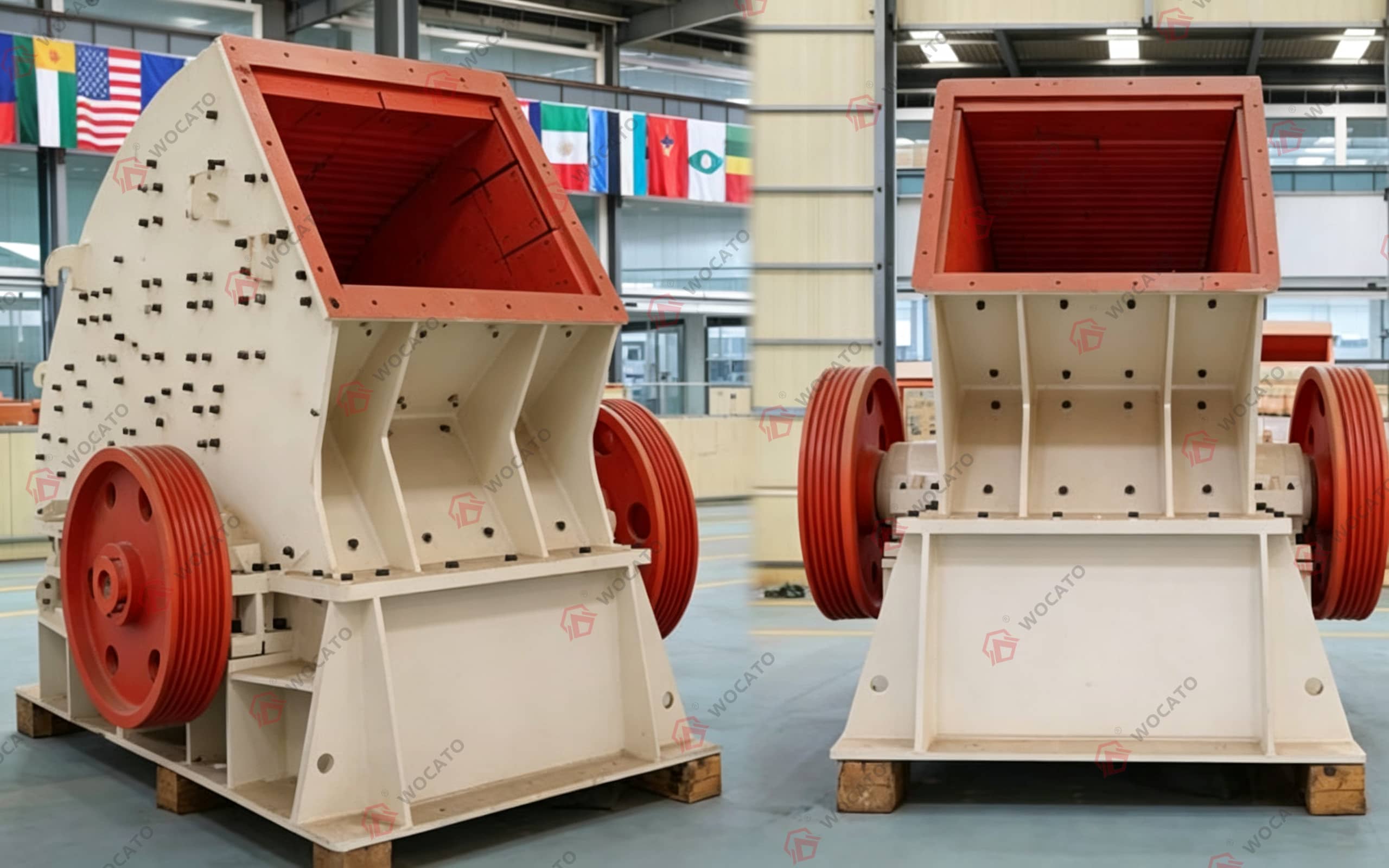

PC Hammer Crusher

The PC Hammer Crusher, also known as hammer mill, reduces large materials into fine particles through impact force.

Capacity: 5~400 t/h Feeding Size: ≤30 mm Output Size: ≤ 5 mm

Get Quotes Whatsapp Engineer

Material

The core component is the rotor with hammer heads, while the adjustable grate plate allows control of discharge size to meet different requirements.

Application

It is widely used for medium-hard and brittle materials in industries such as mining, cement, coal, metallurgical industry, building materials, and highways.

Product Features

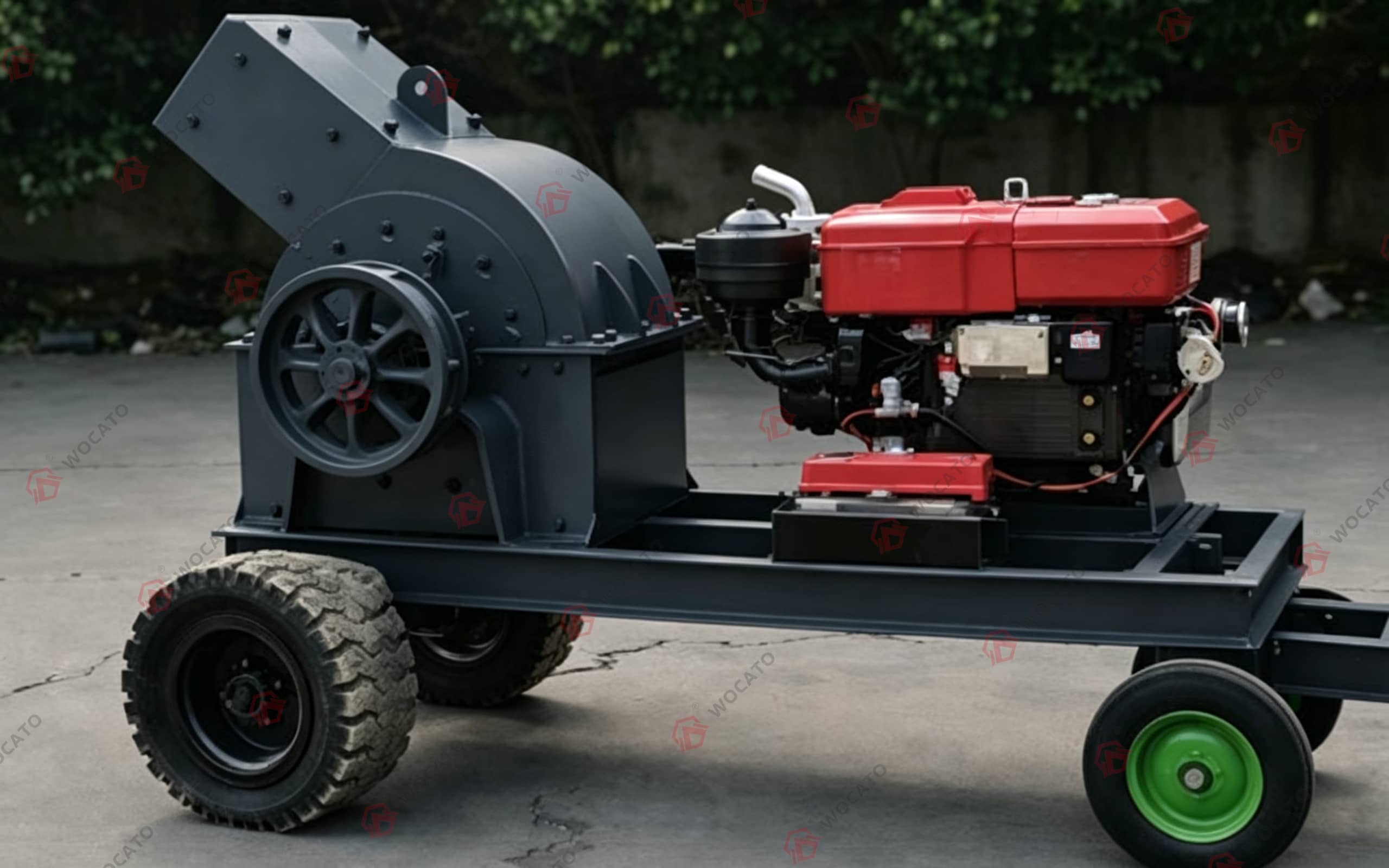

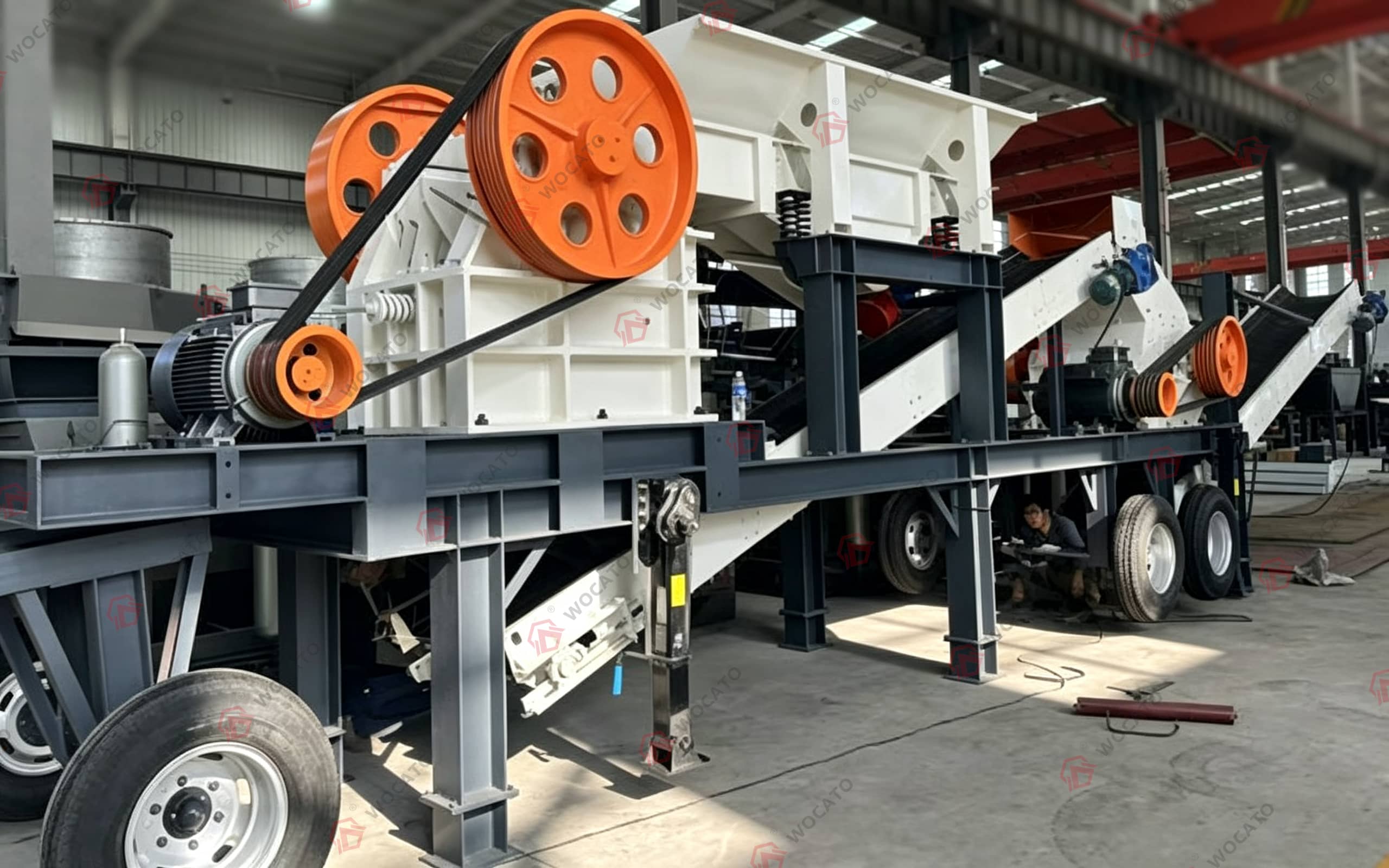

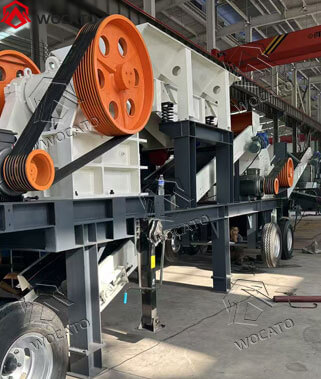

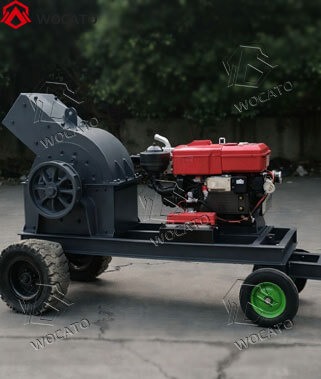

Available in both mobile (diesel or electric) versions, it features a simple structure, large crushing ratio, high efficiency, and suitability for both dry and wet applications.

Special structure, high-chromium and unique impact liner; crushes hard rock with high efficiency

Low energy consumption; cubic-shaped product; simplified process

By technical improvement and research, discharge particle size can be adjusted

Equipped with a new-type dedusting device to eliminate dust, which is beneficial to the environment

Simplified process

Stable and durable operation with low maintenance cost, reducing long-term operational expenses for clients

Specification

Model	Max. Feeding Size	Discharge Size	Capacity (t/h)	Power	Weight (t)	Overall Dimensions (mm)
PCФ400×300	≤200mm	≤25mm	5–10	11KW	0.8	900×670×860
PCФ600×400	≤250mm	≤30mm	10–22	22KW	2.26	1200×1050×1200

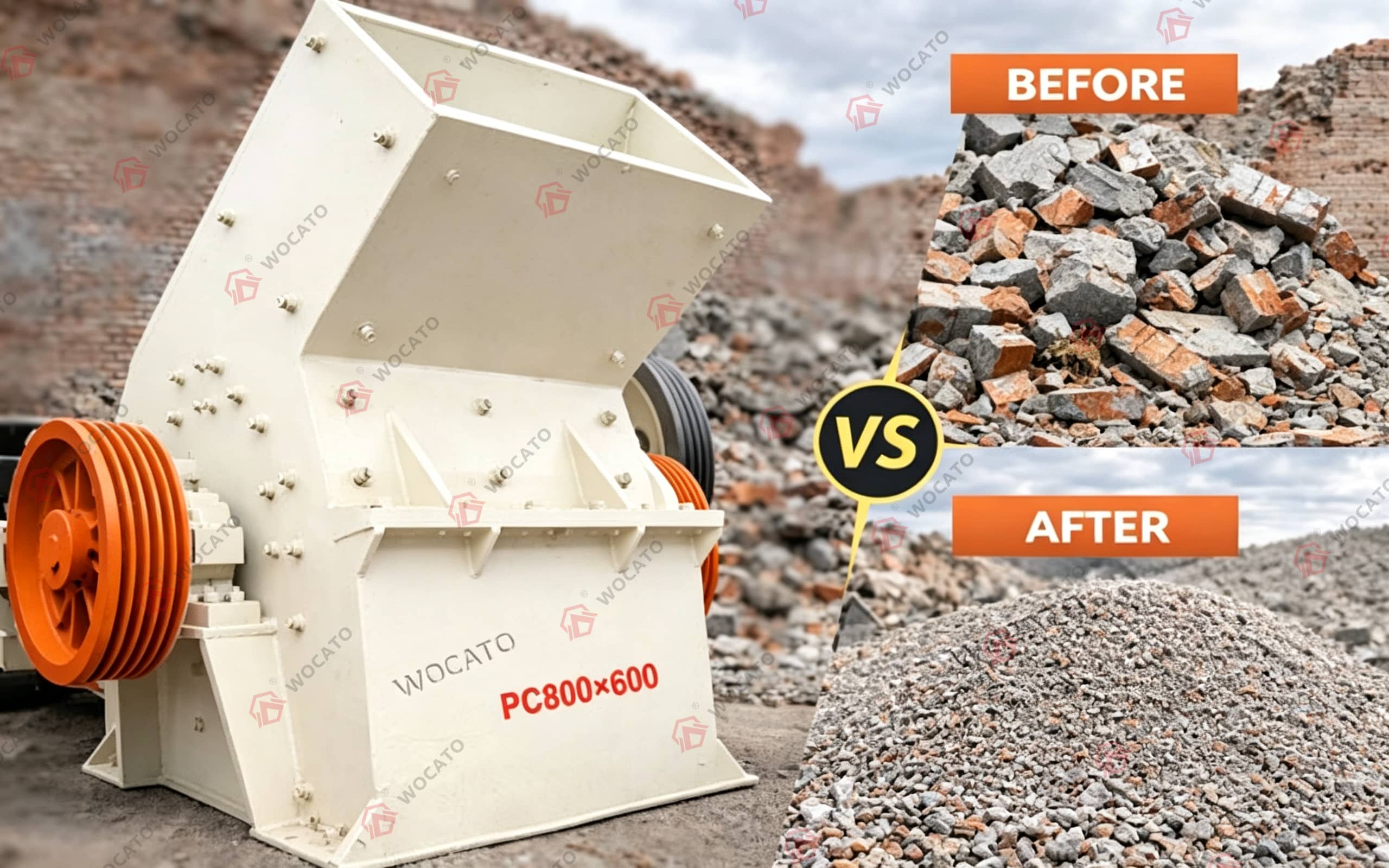

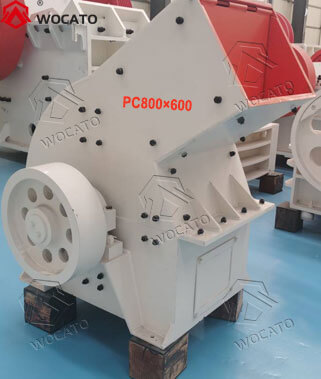

PCФ800×600	≤250mm	≤35mm	18–40	55KW	4.8	1310×1180×1310
PCФ1000×800	≤350mm	≤35mm	25–50	75KW	5.9	1600×1390×1575
PCФ1000×1000	≤350mm	≤35mm	30–55	90KW	8	1800×1590×1775
