Semi-Mobile Skid Combined Crushing Plant

skid-mounted 4-in-1 crushing station integrates jaw crusher, cone crusher, impact crusher, VSI sand making machine into one complete system. Foundation-free installation saves time!

Capacity: 30~300 t/h Feeding: ≤850 mm Output: 0-5/12/19/25 mm (customizable) Power: 95kw-400 kw

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

Product Features

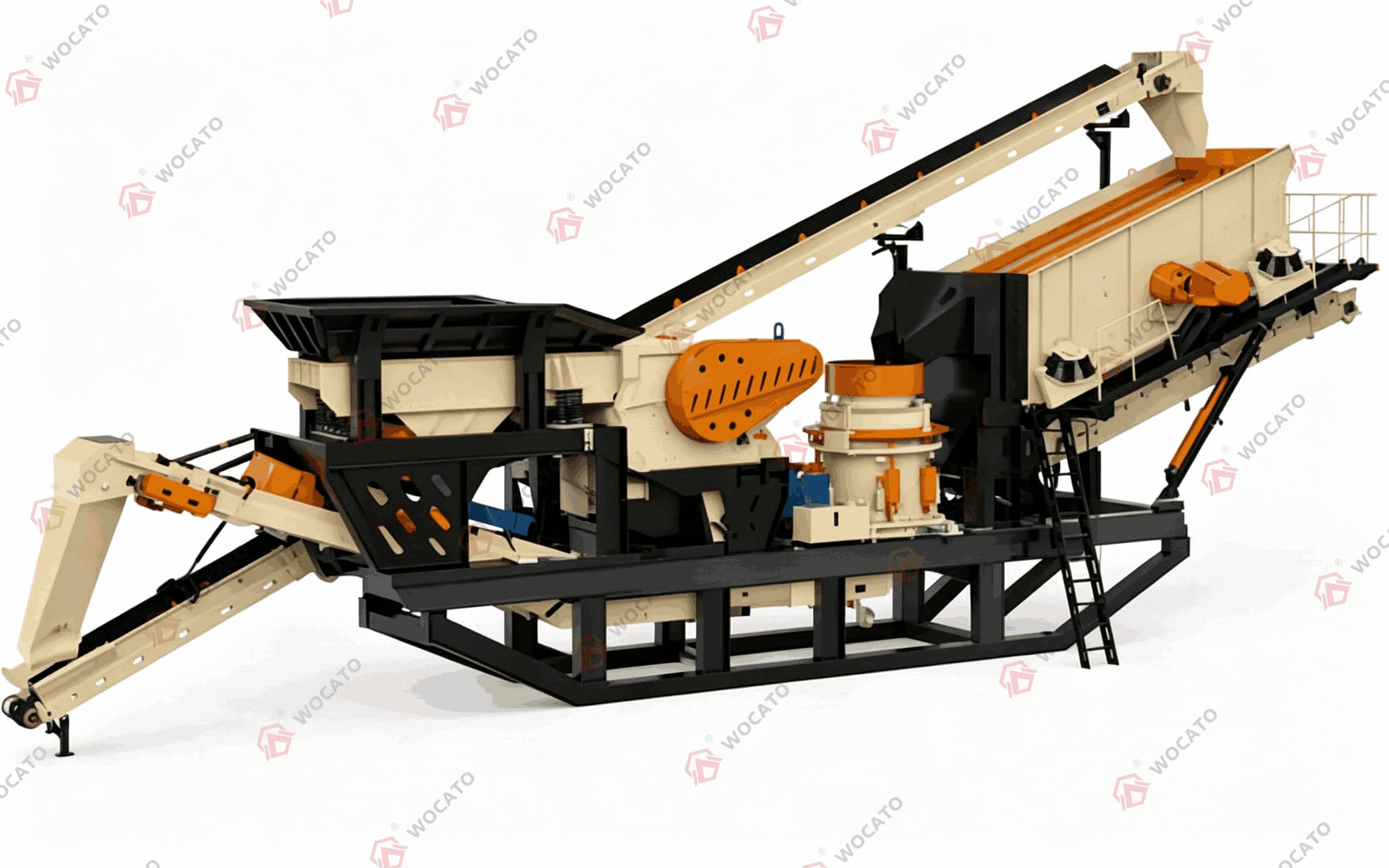

The skid-mounted 4-in-1 crushing station integrates jaw crusher, cone crusher, impact crusher, and VSI sand making machine into one complete system. This all-in-one solution can handle the entire crushing and screening process from raw material to final products. It offers maximum versatility, space-saving design, and efficient production of multiple aggregate sizes. Perfect for large-scale mining operations and major infrastructure projects requiring diverse product outputs.

Durable Structure: Heavy-duty frame ensures reliable performance in demanding environments.

Compact & Modular Design: Pre-assembled on a skid base for easy transport and installation;Quick Installation;“Plug-and-play” setup reduces installation time and site preparation

ost-Effective: Lower civil construction investment compared with traditional fixed plants.

Mobility & Relocation: Can be moved and redeployed more easily than stationary plants.

Versatility: Suitable for quarries, mining, construction waste recycling, and temporary projects.

Scalable Solution: Multiple skid units can be combined to handle larger capacity requirements.

Specification

Model	KM-PE46-CS75-4C	KM-PE57-CS110-4C	KM-C96-HP200-4C	KM-C96-PF1214-4C
Vibrating Feeder	GZD8530	GZD8530	GZD9638	GZD9638
Jaw Crusher	PE400x600	PE500x750	SC96	SC96
Impact/Cone Crusher	CS75	CS110	HP200	PFV1214
Vibrating Screen	3YK1548	3YK1848	3YK1848	3YK1848
Main Belt	B800	B800	B1000	B1000
Capacity (t/h)	50-80	80-150	100-200	100-200
