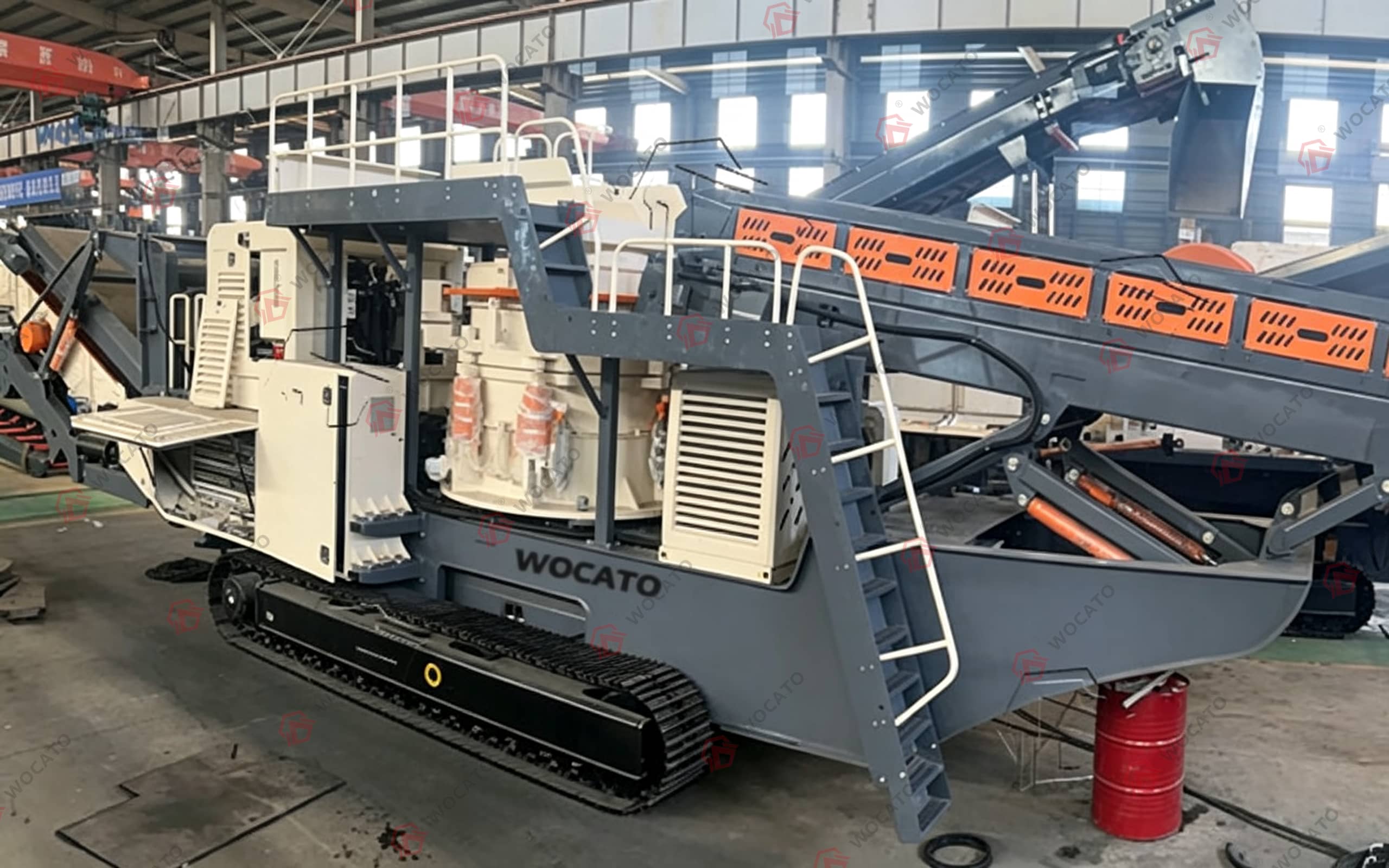

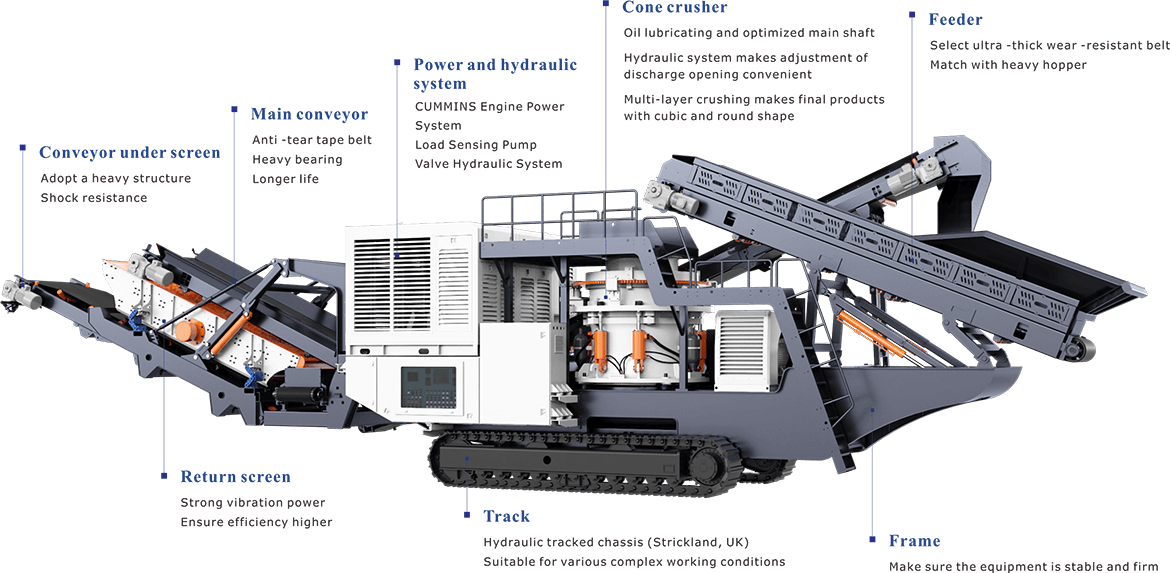

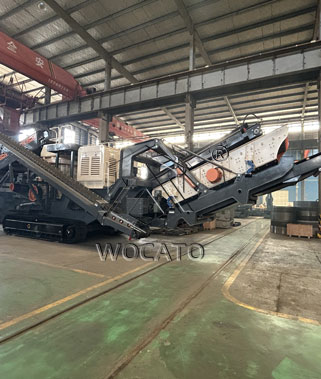

The track mounted cone crusher is designed to maximize production and is renowned for achieving high reduction ratios, producing a well-shaped cubic product, and delivering premium-quality aggregates and sub-base materials. It can also be equipped with a recirculating conveyor and a single-deck screen to further reduce oversized material in a single pass. Fully automated with a high level of intelligence and automation, the unit’s fully hydraulic chassis and self-propelled system allow remote-controlled operation. This makes it well-suited for use on slopes and rugged terrain, providing strong power and reliable uphill performance. Among cone crushers, it stands out as one of the most versatile and dependable options on the market.
| Model | THP200 | THP300 | THP400 | TSH430 |
| Cone Crusher | THP200 | THP300 | THP400 | SH430 |
| Maximum Feed Size | 150mm | 200mm | 260mm | 50-185mm |
| Output Size | 16mm | 10mm | 20mm | 13mm |
| Motor Power | 160kW | 220kW | 280kW | 160kW |
| Capacity | 90-250tph | 110-440tph | 140-630tph | 48-208t/h |
| Return Screen | YK1500*3800 | YK1600*4000 | YK1500*3800 | YK1500*3800 |
| Drive Method | Vibration Motor3.7kW*2 | Vibration Motor3.7kW*2 | Vibration Motor3.7kW*2 | Vibration Motor3kW |
| Generator Set | 320 kW CUMMINS | 500 kW CUMMINS | 500 kW CUMMINS | 275kW CUMMINS |
| Electrical System | The cone crusher motor is started by frequency conversion, the feeder is started by frequency conversion, and the other motors are started directly；Low-voltage components: Schneider | |||
