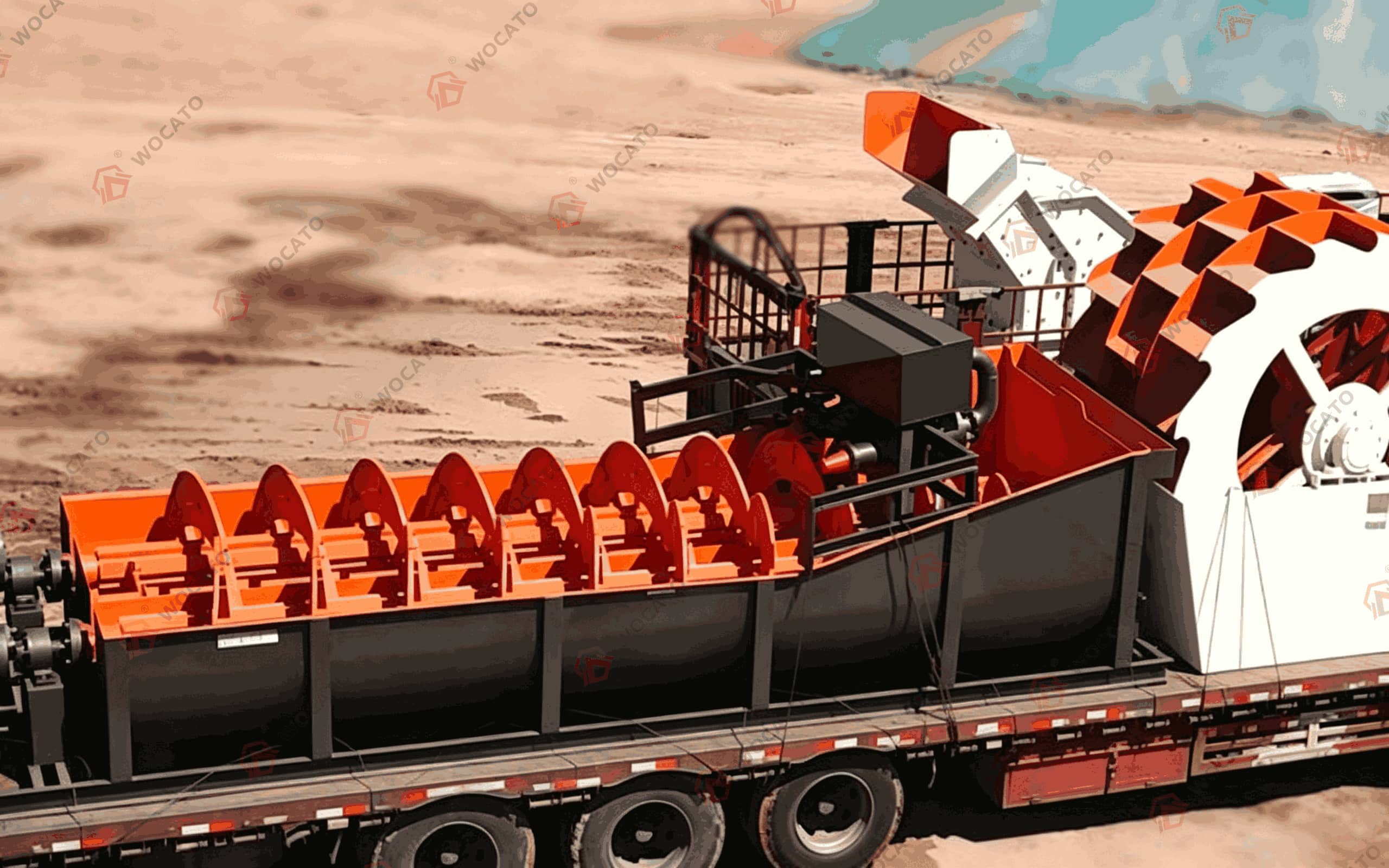

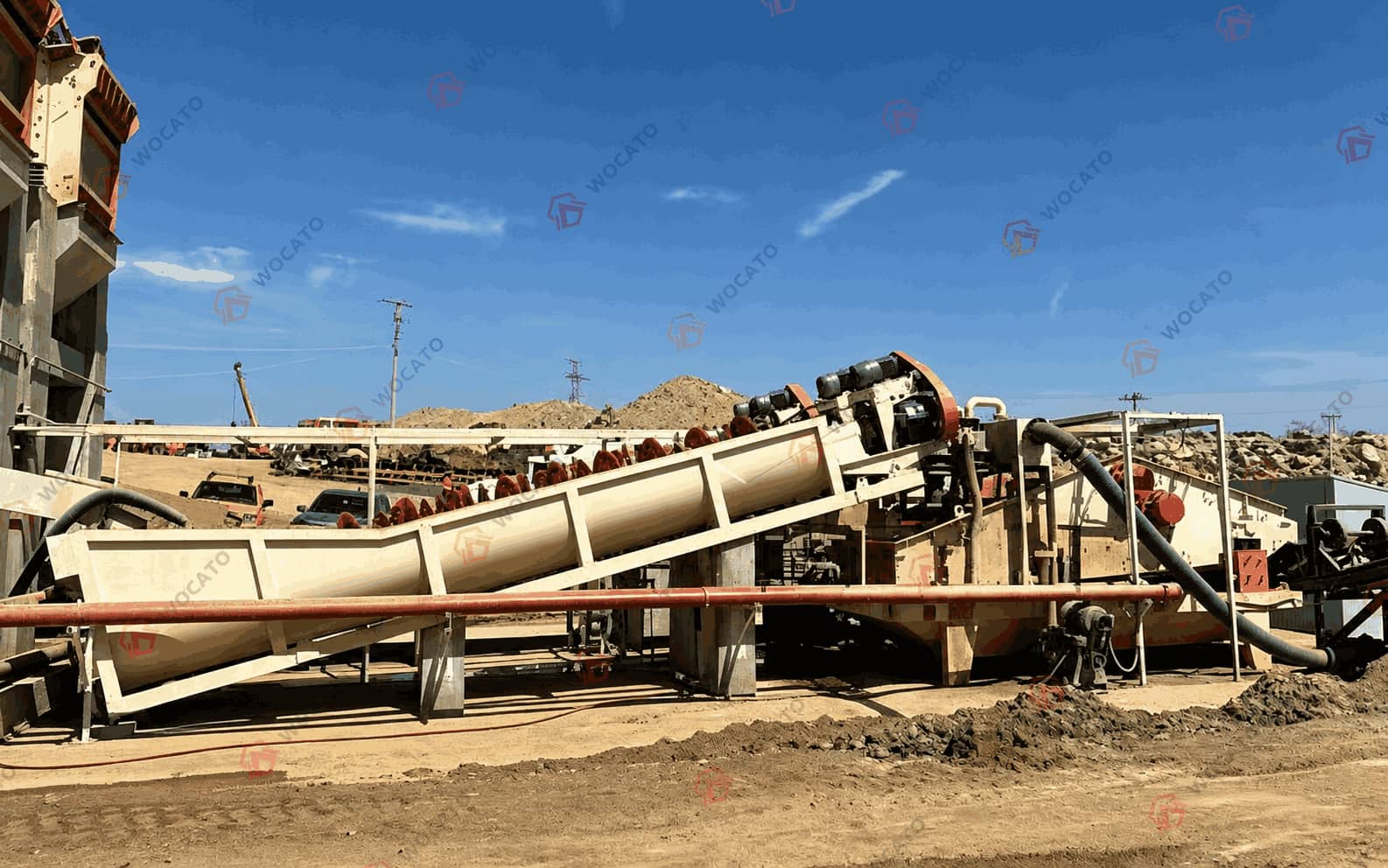

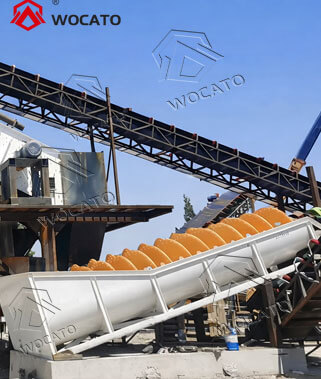

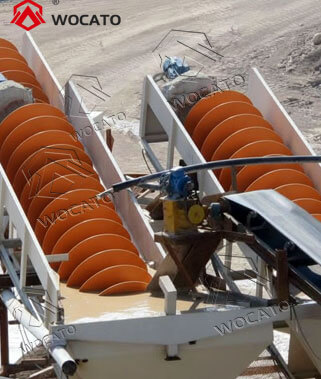

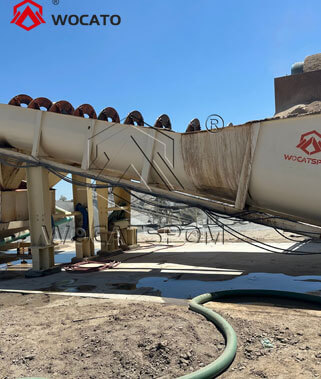

XL Spiral Sand Washer

XL Spiral Sand Washer: Efficiently cleans sand with a new seal and adjustable overflow weir.

Capacity: 5-260 t/h Feeding : ≤10 mm Power: 5.5-18.5 kw

Get Quotes Whatsapp Engineer

Material

Suitable for cleaning and grading sand, gravel, and fine/coarse-grained materials, effectively removing soil (dirt) and impurities.

Application

Widely used in highway, hydropower, construction industries for washing, grading, impurity removal, and fine/coarse material separation—especially for building and road construction sand.

Product Features Parameter Related Products Related Cases Contact Sales

Product Features

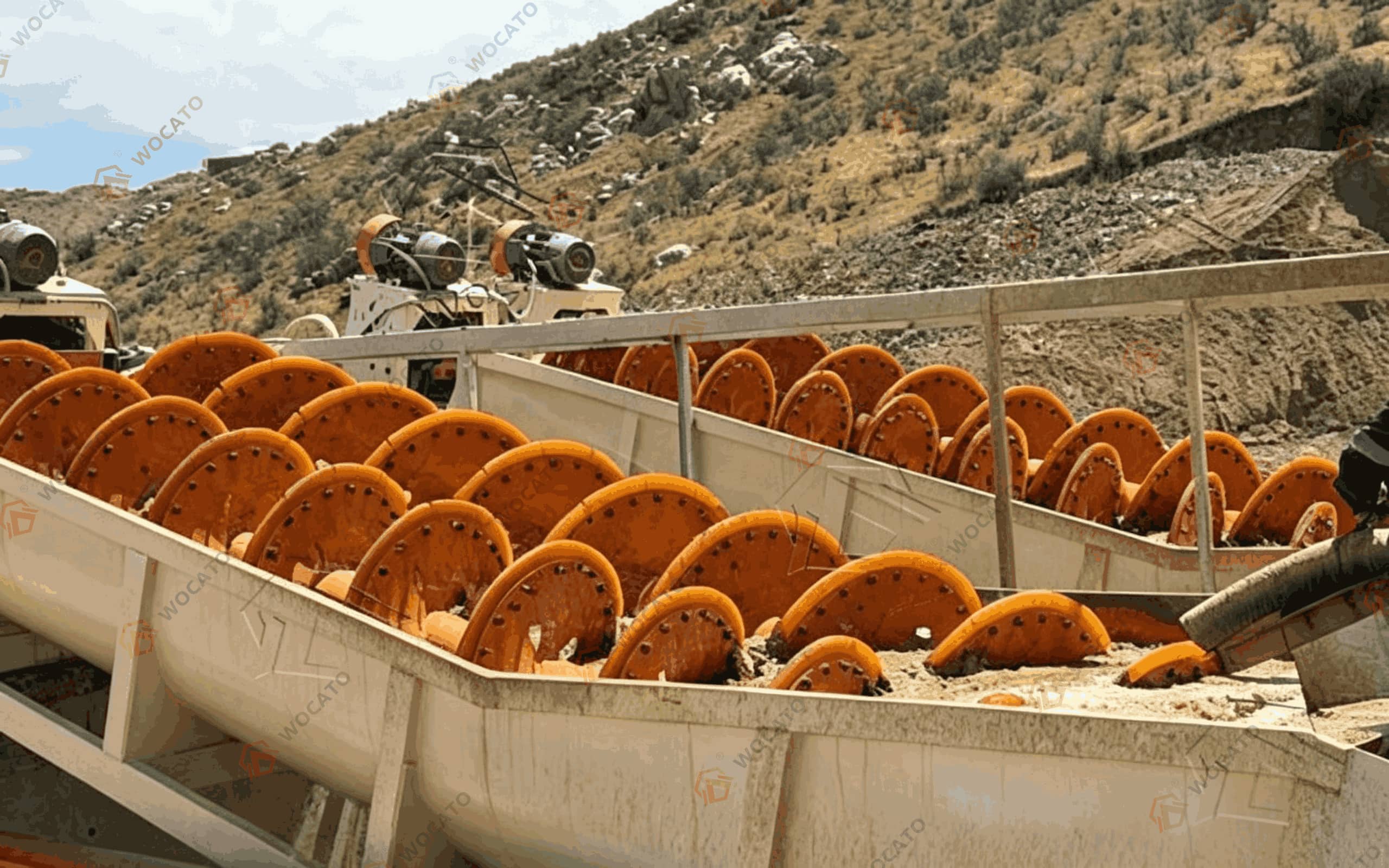

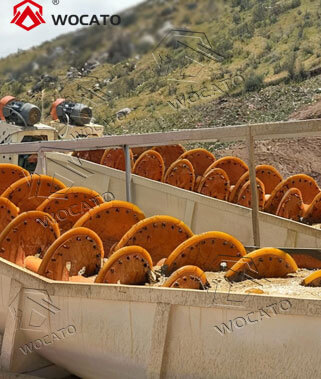

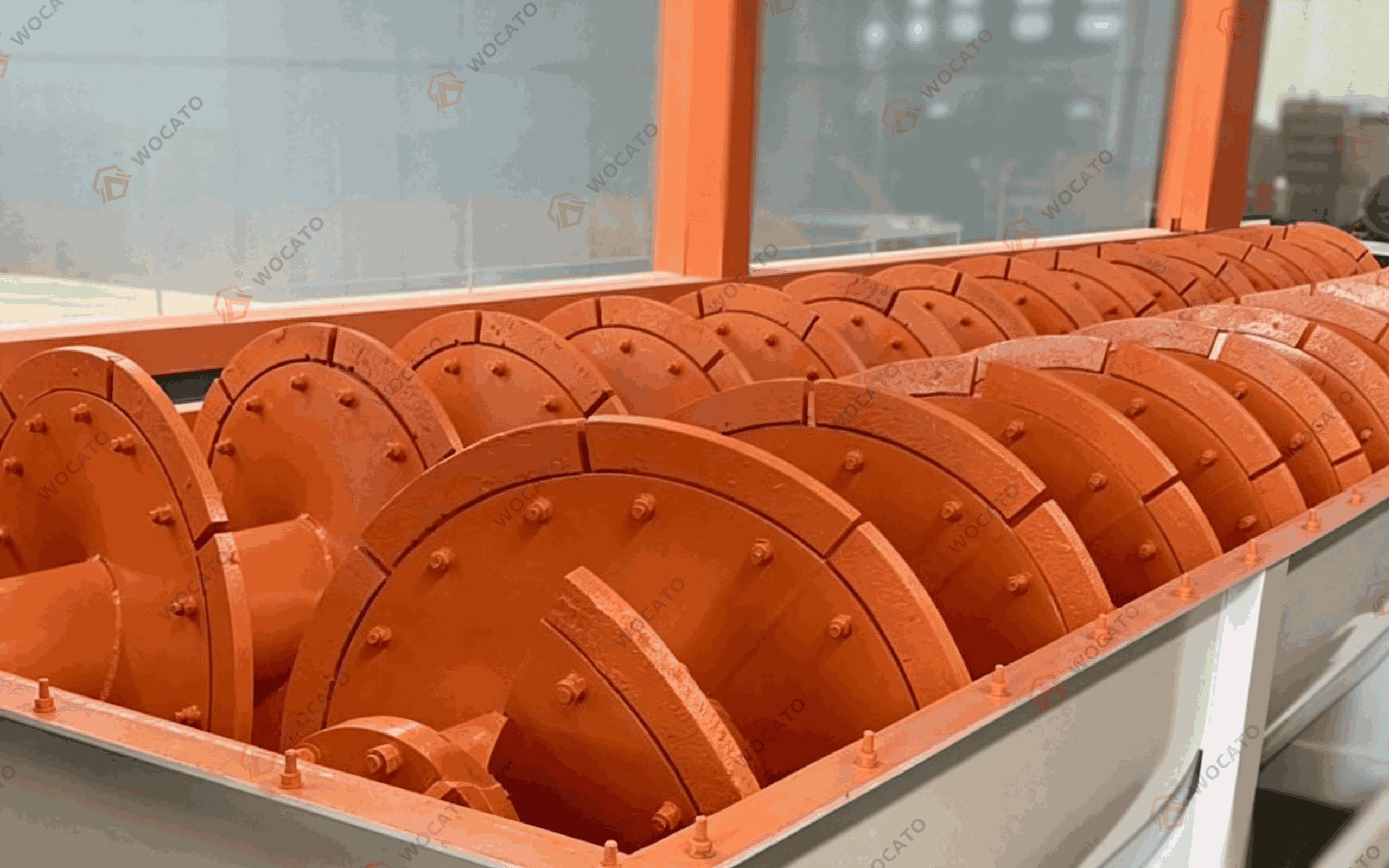

Single/double spiral options for versatile needs

Novel sealing structure ensures washing-dehydration efficiency

Adjustable overflow weir plate for precise grading

Reliable transmission device for stable operation

Separates dirt/debris from sand effectively

Ideal for building and road construction sand

Specification

Model	XL515	XL765	XL920	2XL920	XL1120	2XL1120
Screw Diameter(mm)	515	765	920	920	1120	1120
Sink Length(mm)	7615	7620	7585	7585	9750	9750
Feeding Size(mm)	≤10	≤10	≤10	≤10	≤10	≤10
Screw Speed(r/min)	38	26	100	200	175	350
Capacity(t/h)	5-15	20-60	40-110	80-220	50-130	100-260
Power(kw)	5.5	11	11	2×11	18.5	2×18.5
Water Consumption(t/h)	6-60	9-63	10-80	20-160	20-150	40-300

Wocato can provide customers with technical services on original products and spare parts to ensure worry-free operation.
