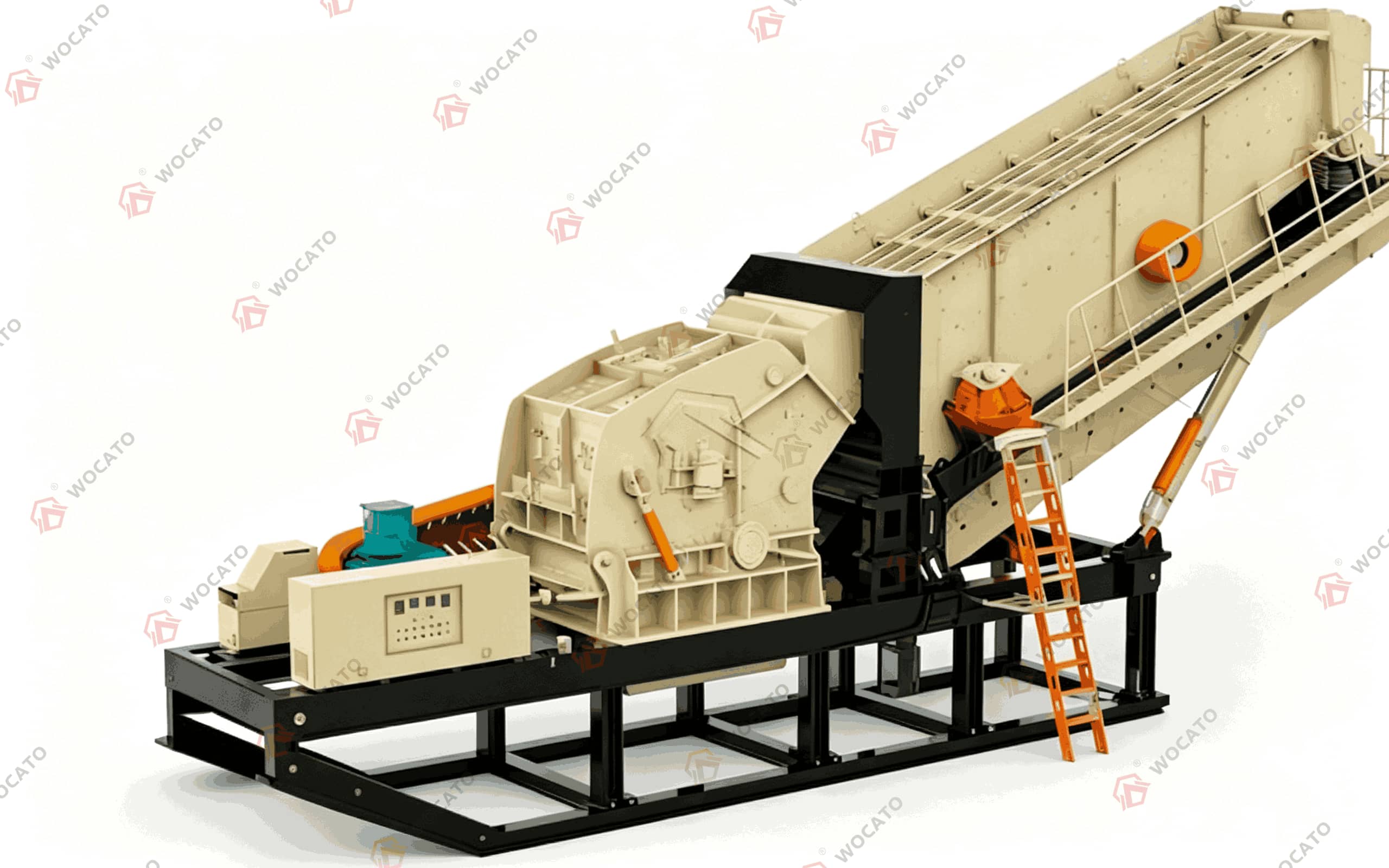

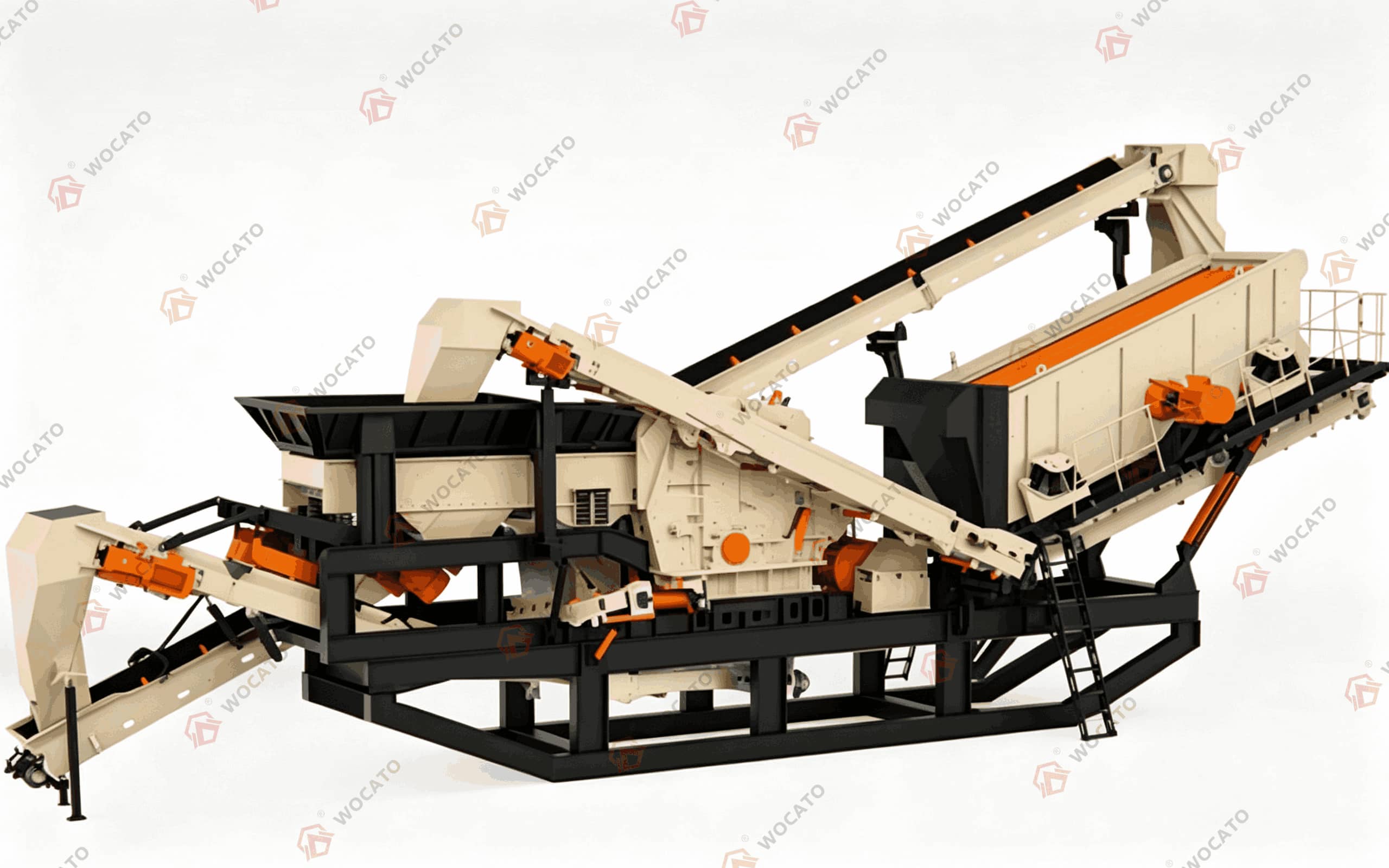

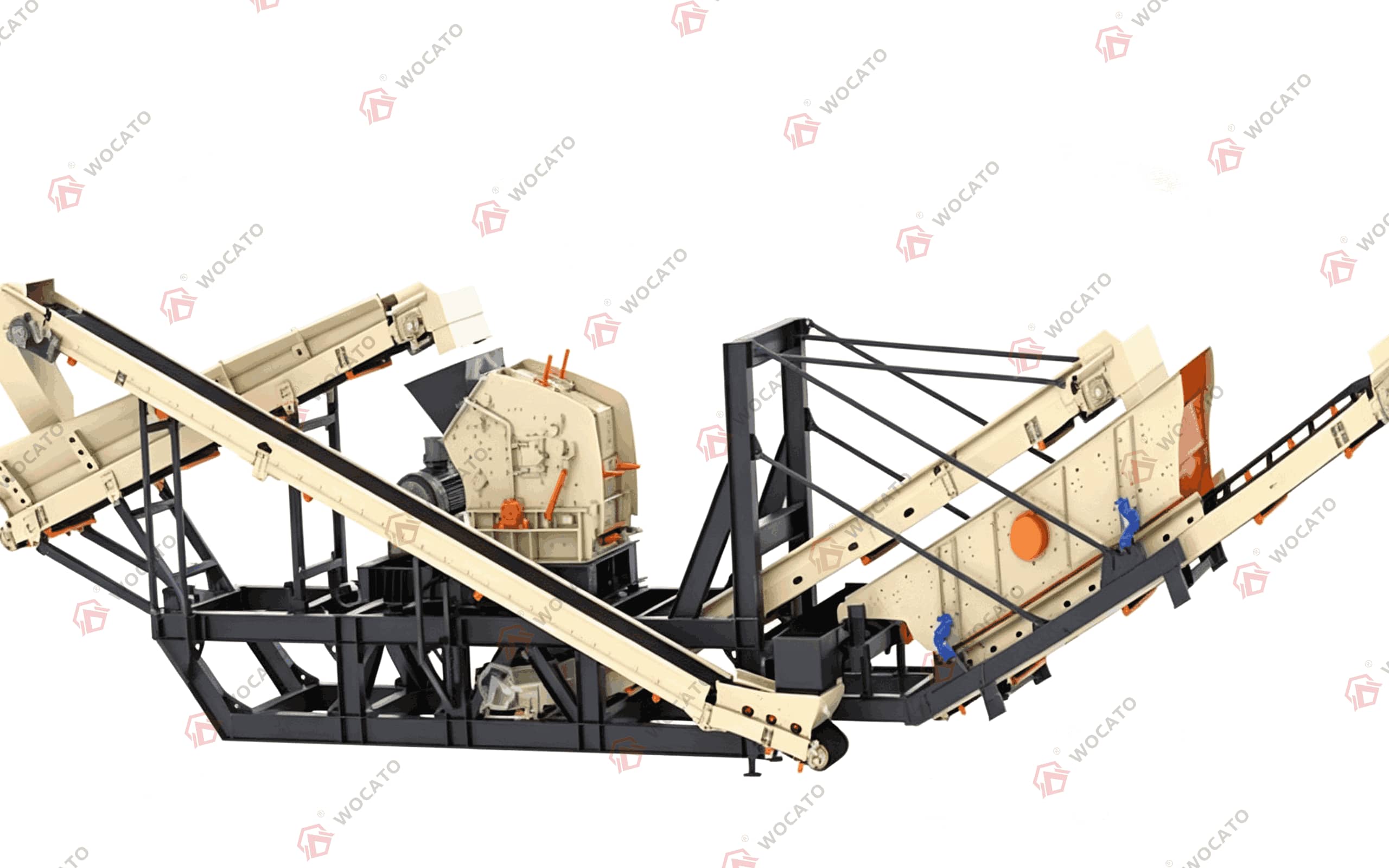

Semi-Mobile Skid Impact Crusher

Foundation-free installation saves time, can be transported as a whole machine, and is easy to move; simple structure, quick assembly!

Capacity: 50~450 t/h Feeding: ≤750 mm Output: 0-5/12/19/25 mm (customizable)

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

Product Features

The skid-mounted impact crusher combines a powerful impact crusher with a vibrating feeder and screen on a mobile platform. It is particularly effective for processing medium-hard materials and producing high-quality, well-shaped aggregates. With adjustable rotor speed and impact plates, it offers versatile crushing capabilities for highway construction, building materials production, and mineral processing applications.

Durable Structure: Heavy-duty frame ensures reliable performance in demanding environments.

Compact & Modular Design: Pre-assembled on a skid base for easy transport and installation;Quick Installation;“Plug-and-play” setup reduces installation time and site preparation

ost-Effective: Lower civil construction investment compared with traditional fixed plants.

Mobility & Relocation: Can be moved and redeployed more easily than stationary plants.

Versatility: Suitable for quarries, mining, construction waste recycling, and temporary projects.

Scalable Solution: Multiple skid units can be combined to handle larger capacity requirements.

Specification

Model	KM-PFV1214-2C	KM-LF150-3C	KM-LF250-3C
Vibrating Screen	3YK1860	3YK1548	3YK1848
Impact Crusher	PF1214	LF150	LF250
Conveyor Under Screen	B800	B800	B1000
Capacity (t/h)	100-200	80-150	150-300
