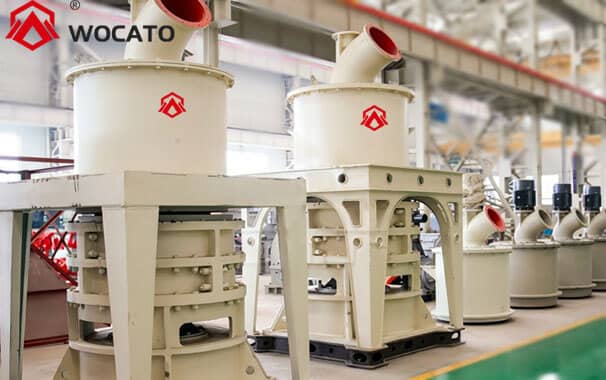

ZSM Ultrafine Powder Mill

ZSM Ultrafine Mill, also known as micro powder mill or superfine powder mill, is a new superfine powder production grinding mill (325-2500 mesh), and its one-time fineness can reach D97:5μm.

Capacity: 0.2~12 t/h Feeding Size: ≤20 mm Output: 200~2500 mesh Power: 100~400 KW

Get Quotes Whatsapp Engineer

Material

Suitable for processing various minerals such as limestone, calcium carbonate, gypsum, dolomite, bentonite, barite, talc, calcite, diabase, quartz, and more.

Application

Crushing calcium carbonate, pulverizing coal, processing gypsum powder, power plant desulfurization, and milling non-metallic ores.

Product Features

Features high efficiency & low energy consumption

Digitized processing ensures greater precision

High safety and reliability.

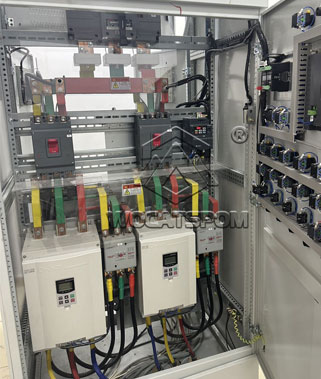

Frequency-conversion control,convenient for the adjustment control

Good dust collector effect

High-efficiency pulse dust collector

Specification

Model	Modeling Diameter(mm)	Ring Number(layers)	Roller Nmuber(pieces)	Main Shaft Speed (r/min)	Input Size (mm)	Finished Size (μm/mesh)	Capacity(t/h)	Overall Dimensions(L×W×H,m)	Total Motor Power	Main Host Power (kW)	Classifier Power (kW)	Blower Power（kW）	Crusher Power(kW)	Bucket Elevator Power (kW)	Spiral Conveyor Power (kW)	Discharging Valve Power (kW)	Air Compressor Power (kW)
ZSM60	φ600	3	15	250-280	≤20	5~74/(200-2500)	0.2-3	11.53.55.2	101(kW)	45	15	37	11	3	2.2	0.75	7.5
ZSM80	φ800	3	21	230-240	≤20	5~74/(200-2500)	0.5-4.5	15.94.26.1	143(kW)	75	18.5	45	11	3	3	0.75*2	11
ZSM90	φ900	4	24	200-220	≤20	5~74/(200-2500)	0.8-6.5	15.94.56.7	189(kW)	90	18.5	45	11	3	3	0.75*2	11
ZSM100	φ1000	4	28	180-200	≤20	5~74/(200-2500)	1-8.5	19.74.77.7	244(kW)	132	30	75	18.5	4	4	1.1	15
ZSM125	φ1250	4	32	135-155	≤20	5~74/(200-2500)	1.5-12	23.24.77.7	401(kW)	185	75	132	45.0	4	4	1.5	37
