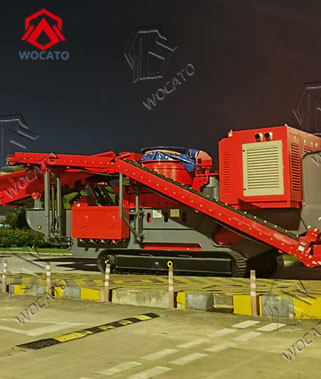

Mobile Tracked VSI SandMaking Plant

Track‑mounted plant for shaping and sand making, flexible standalone or combined operation.

Capacity: 180~400 t/h Feeding: ≤45 mm Output: 0-5mm Power: 315 kw

Get Quotes Whatsapp Engineer

Material

Most kinds of rocks, metallic ores, such as granite, riverstones, limestone, basalt, marble, iron ore, copper ore, construction waste,etc

Application

Widely used in aggregate production, highway and railway construction, airport projects, demolition recycling, and mining operations.

Product Features

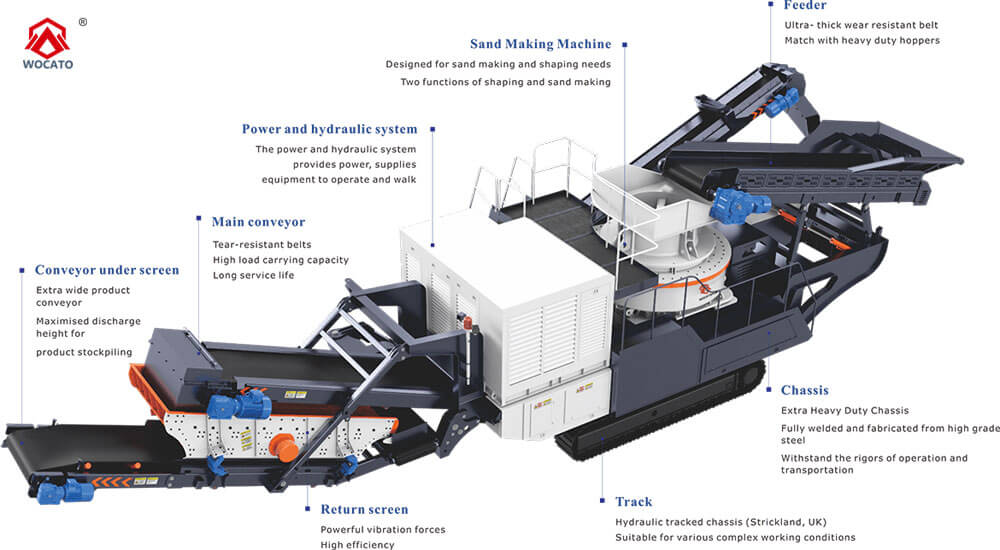

Designed for the final stage of the crushing process, WOCATO's Track-mounted Sand and Screening Plant TVS9532 has a unique crushing process at the heart of a vertical shaft impact crushing plant that produces high quality end products ideal for the production of high quality cubic aggregates, roadbeds and premium manufactured sand. With a maximum throughput of up to 400 tonnes per hour from a single machine, it offers a 30% increase in output compared to conventional plants of the same capacity.

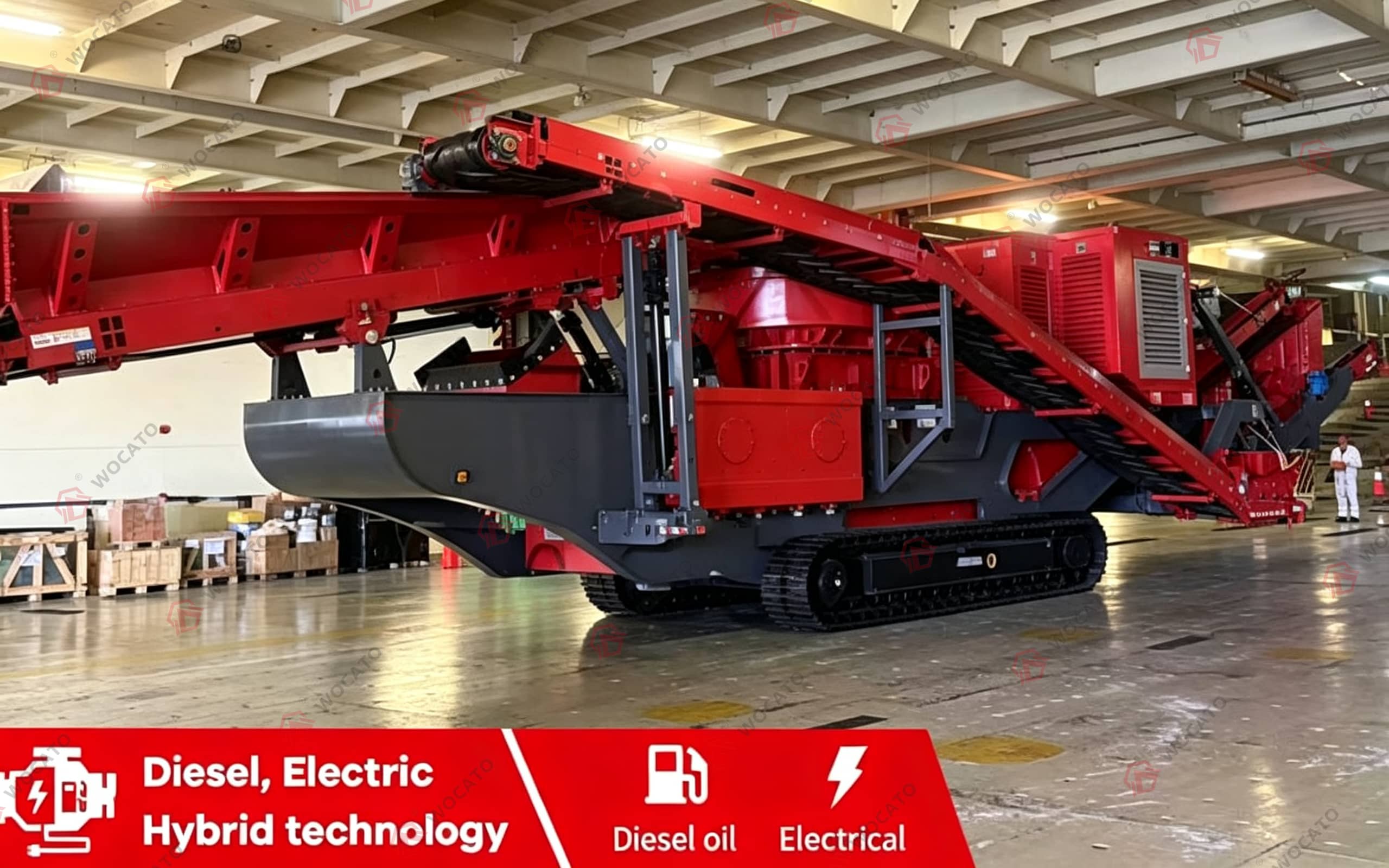

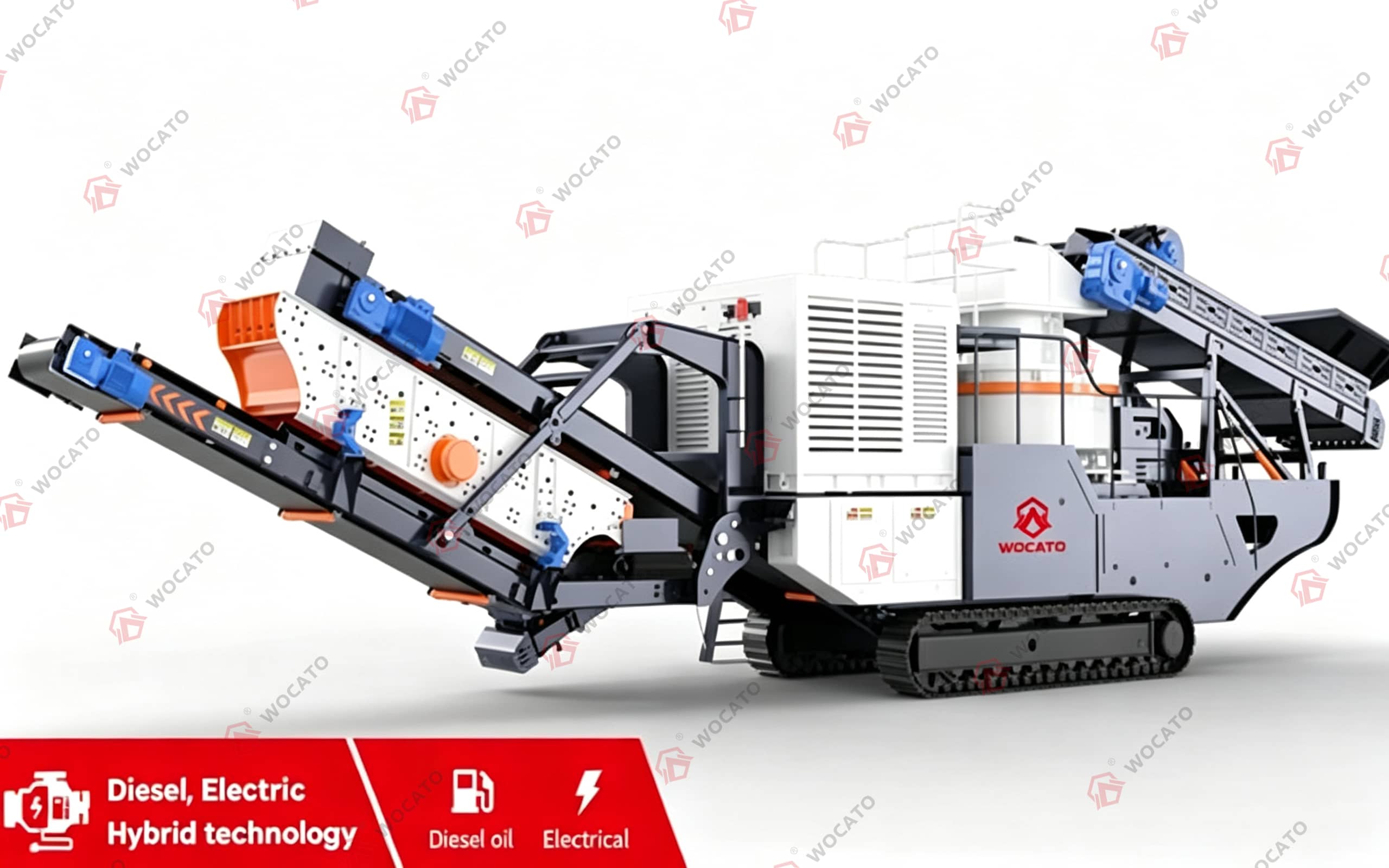

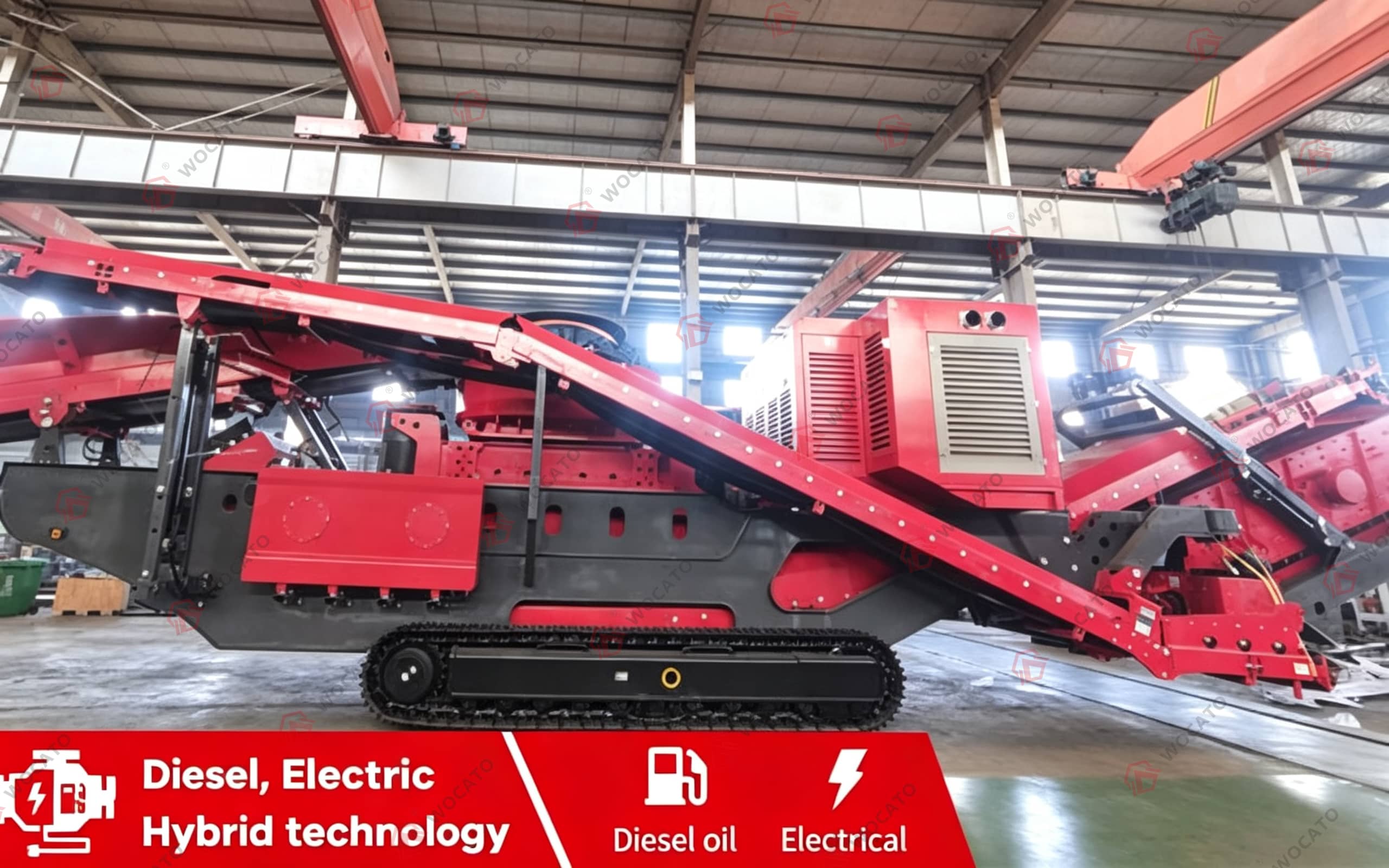

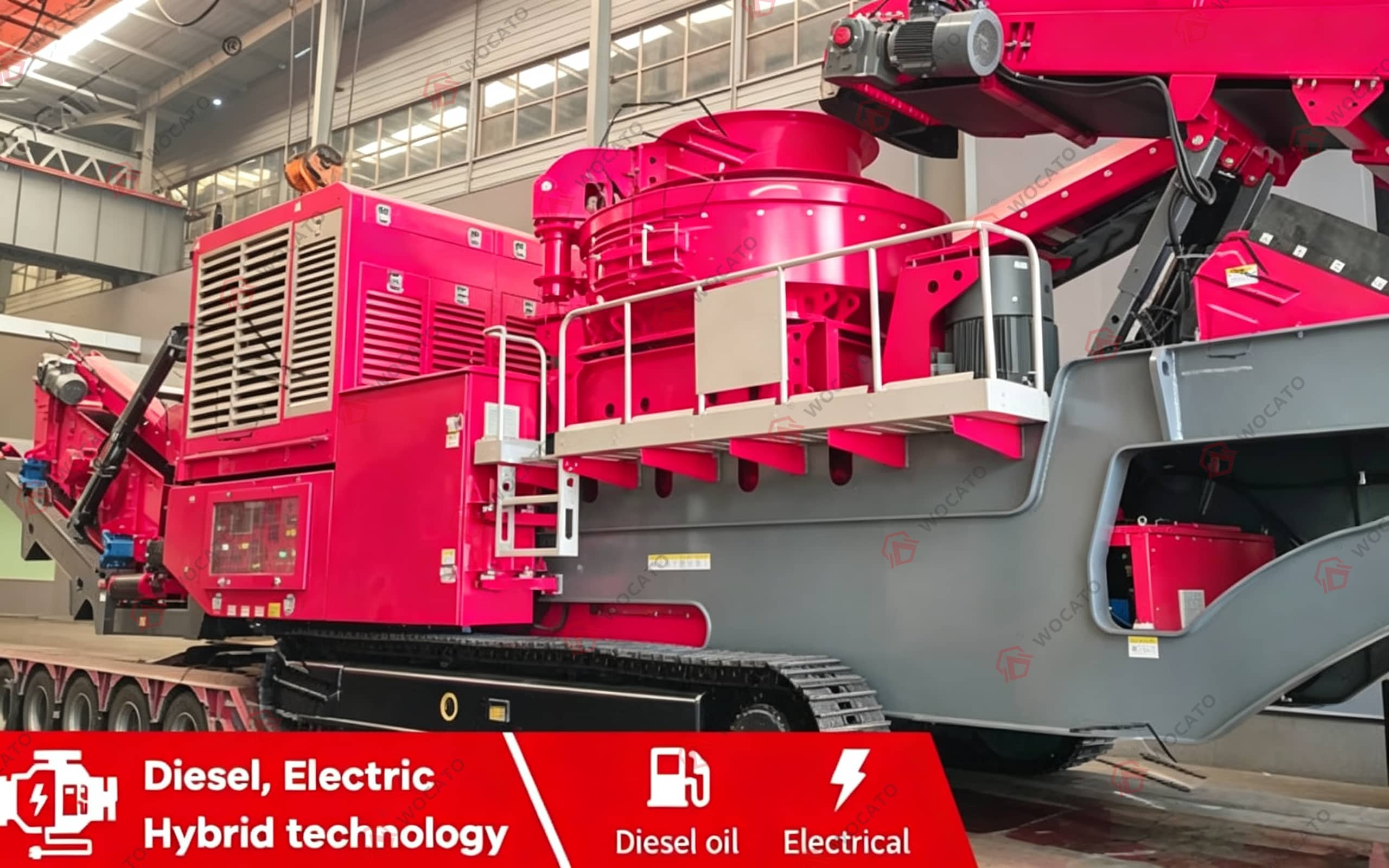

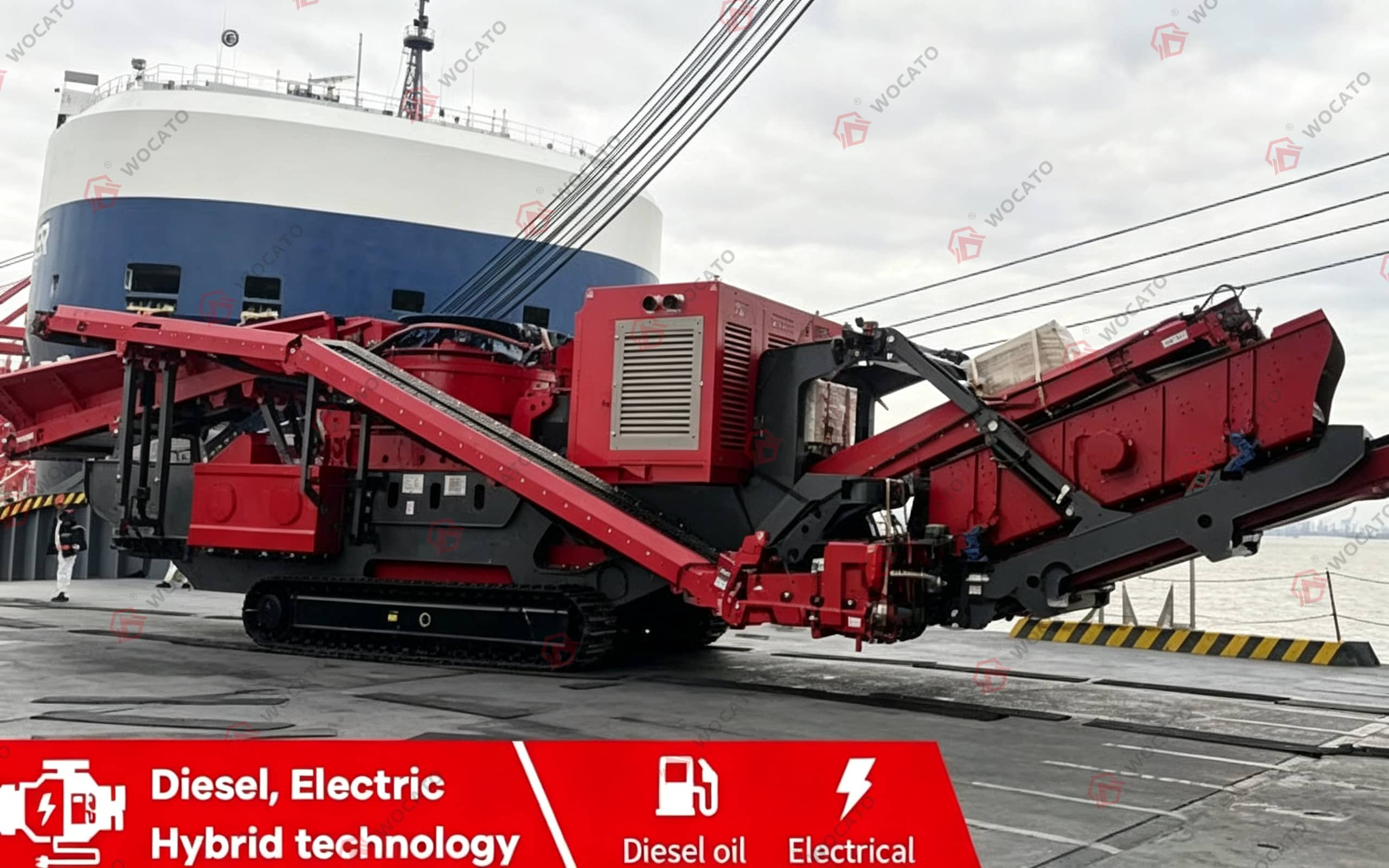

Diesel-Electric Hybrid Power: Ensures fuel efficiency and lower emissions

No need installation or assembly; Rapid return on investment

Capable of producing 3-4 aggregate sizes simultaneously

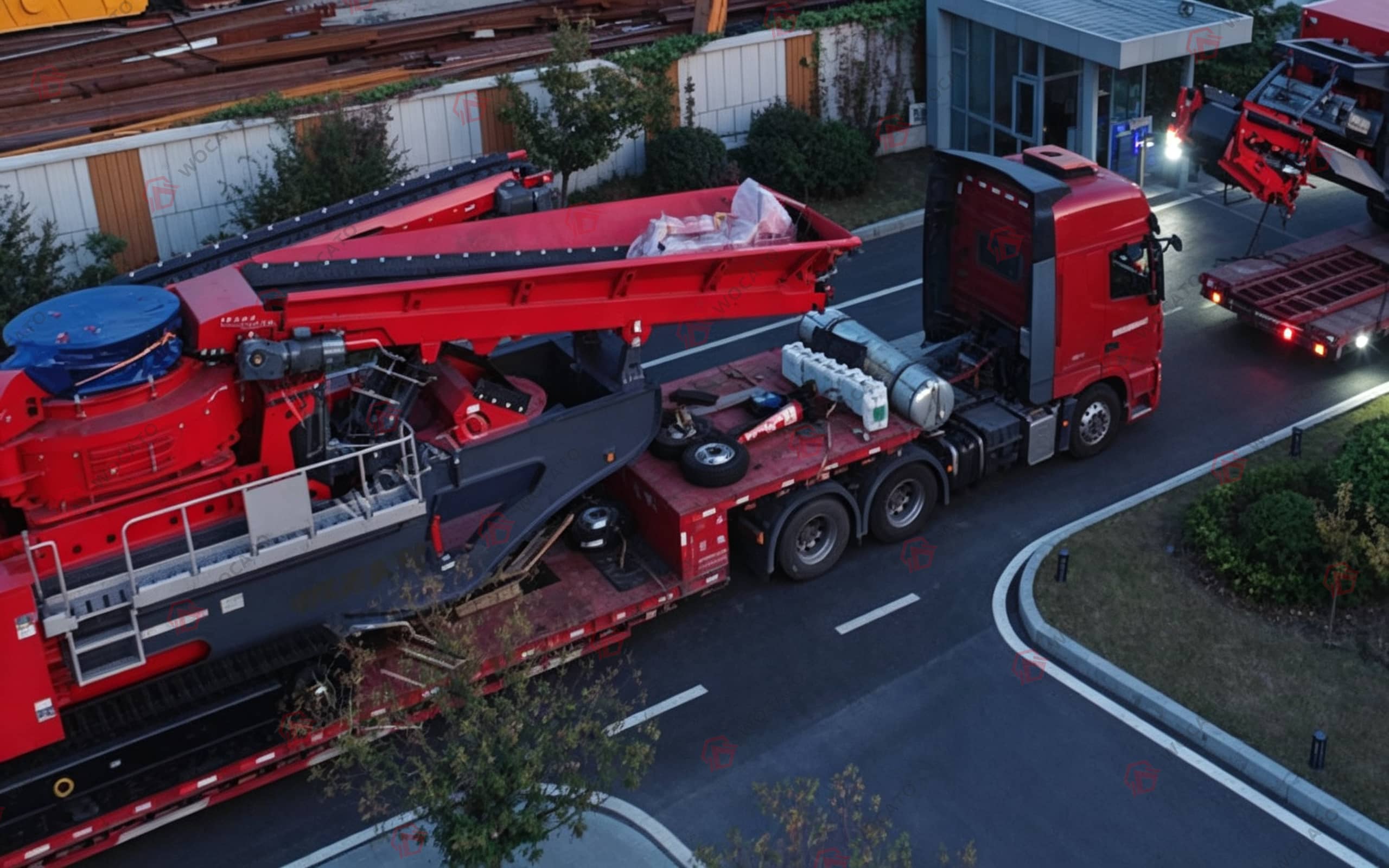

Strong mobility for fast relocation between sites；Automated start&stop, remote control, PLC system, etc.

Configure metal separator,the belt speed sensor and other Customized solutions

Lifetime technical support & original spare parts service

Specification

Name	Model
Feeding belt conveyor	B1200*4.6m,11kW
Maximum feeding size	45mm (Soft Material); 40mm (Hard Material)

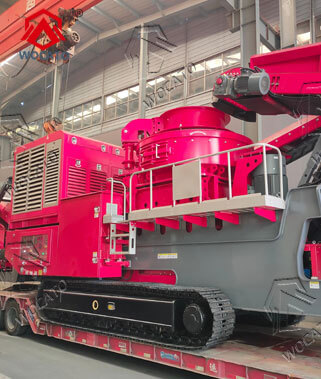

Sand Making Machine	VS19532; 315kW
Rotor diameter	950mm
Return screen	YK1700*4500 3.7kW
Power system	Engine 570kW/Generator 520kw
Electrical System	PLC intelligent control system
Hydraulic system	Hydraulic lifting
capacity(t/h)	180-400tph(180-280tph, Center Feeding; 350-400tph, Cascade and Center Feeding)
Operation weight	60t
Operation Dimensions	Length 21m \| Width 3.85m \| Height 5.6m
