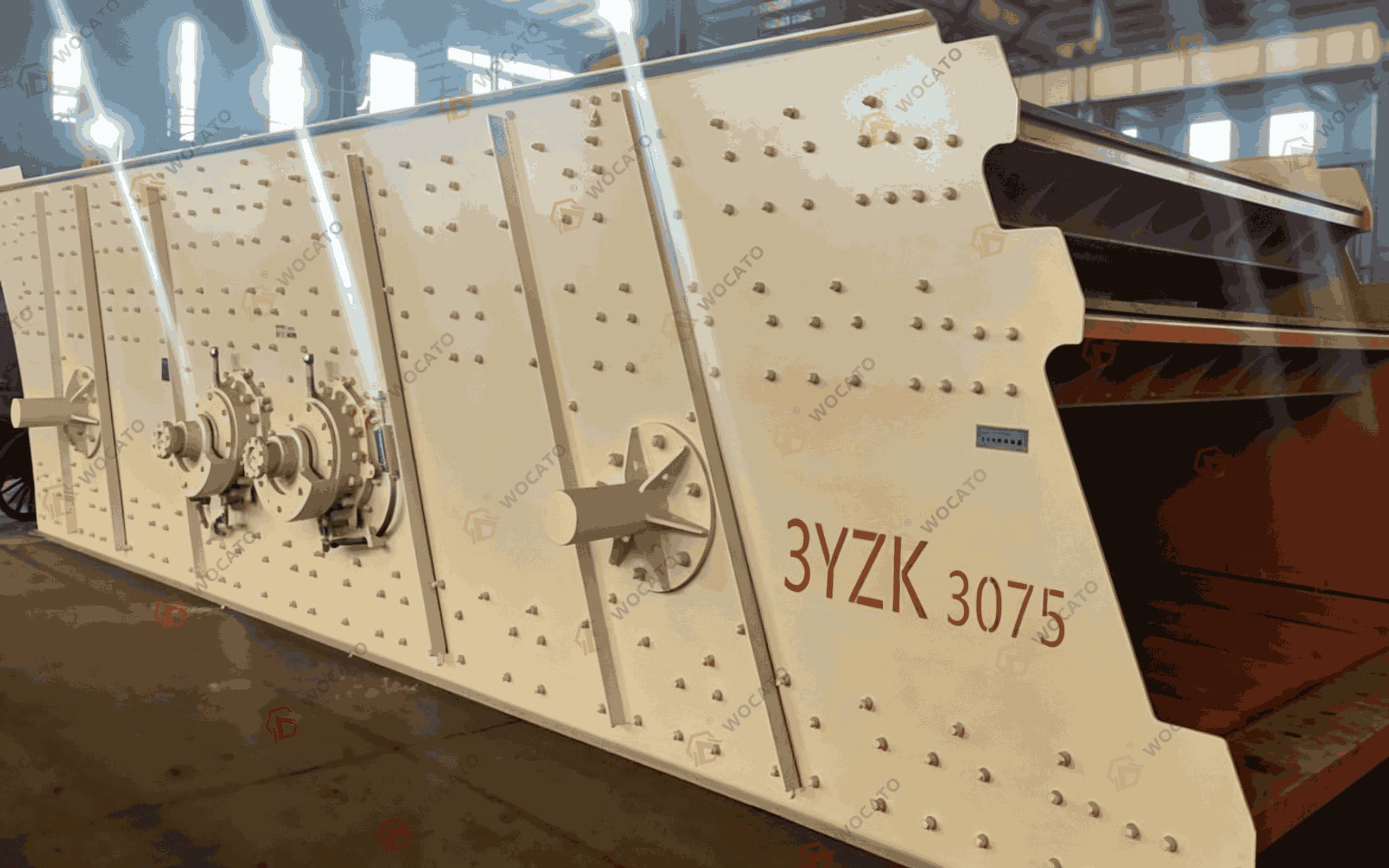

YZK Vibrating Screen

The circular vibrating screen derives its name from its near-circular motion trajectory. This screening machine features a multi-layer structure and operates with high efficiency.

Capacity: 30-800 t/h Feeding Size: ≤400 mm Power: 5.5-45 kw

Get Quotes Whatsapp Engineer

Material

It is suitable for screening and classifying medium and fine-grained ores (such as limestone, granite, quartz sand, etc.).

Application

It is widely used in the quarry, building material, transportation, energy, chemistry, etc.

Specification

Model	Screen Surface Specification (mm)	Layers	Feeding Size(mm)	Sieve Pore Size (mm)	Capacity (t/h)	Power (kw)	Vibrating Frequency (r/min)	Double amplitude (mm)
2YZK1237	3700×1200	2	≤400	3-100	10-80	5.5	980	7-9
3YZK1237	3700×1200	3	≤400	3-100	10-80	7.5	980	7-9
2YZK1548	4800×1500	2	≤400	3-100	30-150	15	980	7-9
3YZK1548	4800×1500	3	≤400	3-100	30-150	15	980	7-9
2YZK1848	4800×1800	2	≤400	3-100	56-200	18.5	980	7-9
3YZK1848	4800×1800	3	≤400	3-100	56-330	18.5	980	7-9
4YZK1848	4800×1800	4	≤400	3-100	56-330	22	980	7-9
2YZK1860	6000×1800	2	≤400	3-100	65-330	18.5	980	7-9
3YZK1860	6000×1800	3	≤400	3-100	65-330	22	980	7-9
4YZK1860	6000×1800	4	≤400	3-100	65-330	30	980	7-9
2YZK2160	6000×2100	2	≤400	3-100	81-450	22	980	7-9
3YZK2160	6000×2100	3	≤400	3-100	81-450	30	980	7-9
4YZK2160	6000×2100	4	≤400	3-100	81-450	30	980	7-9
2YZK2460	6000×2400	2	≤400	3-150	100-550	22	980	7-9
3YZK2460	6000×2400	3	≤400	3-150	100-550	30	980	7-9
4YZK2460	6000×2400	4	≤400	3-150	150-650	37	980	7-9
2YZK2870	7000×2800	2	≤400	3-200	120-650	22×2	980	7-9
3YZK2870	7000×2800	3	≤400	3-200	200-650	30×2	980	7-9
2YZK3070	7000×3000	2	≤400	3-200	200-700	30×2	980	7-9
3YZK3070	7000×3000	3	≤400	3-200	200-700	37×2	980	7-9
